Scissor Lift Heavy Duty

from $839.00

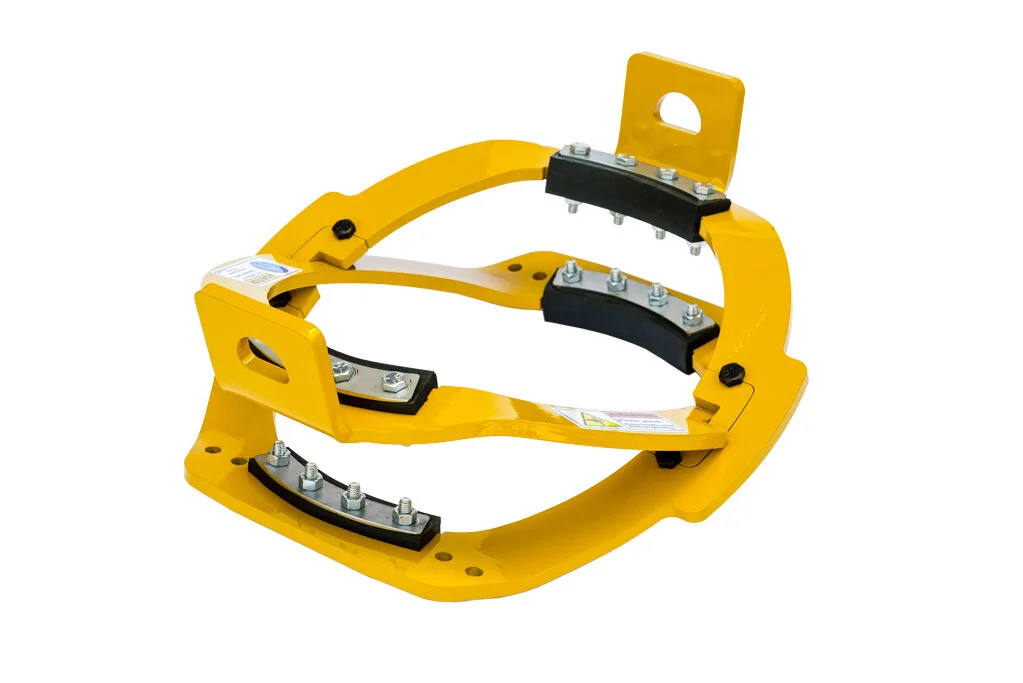

A scissor lifting assembly that makes it safe to lift pressurized gas cylinders from 9” to 14” in diameter weighing up to 450 pounds. The patented design effectively self guides over the cylinder and grabs it immediately as the assembly is lifted.

A-36, 3/8 Plate, Smooth Grips

Size:
Sling:

A scissor lifting assembly that makes it safe to lift pressurized gas cylinders from 9” to 14” in diameter weighing up to 450 pounds. The patented design effectively self guides over the cylinder and grabs it immediately as the assembly is lifted.

A-36, 3/8 Plate, Smooth Grips

SHARE

Download a spec sheet to share with your crew.

Download (PDF)

SPECS

  • The Attollo Scissor Lift Heavy Duty is comprised of inner and outer rings and retaining inserts made of steel plate 3/8″, ASTM A36 material.

  • Retainer escutcheon plates are HRAP T-304 stainless steel, 12 gauge.

  • Rubber grips are neoprene with a 60-65 Durometer Shore A. Smooth grips are designed to handle both wet and dry conditions.

  • This device complies with ASME B30.20, Below-the-Hook Lifting Devices, requirements.

  • Designated as Design Category A and Service Class 0 (<20,000 cycles).

  • Lifting slings provided upon selection: Two (2) Nylon 1200 lb. rated, 1’’ single ply x 4’, slings over a 3800 lb. rated oblong ring and two 3000 lb. rated shackles.

WEIGHTS & MEASURES

Size I.D. O.D. Weight Capacity
9" 10.5" 13.75" 20 lbs. 450 lbs.
10" 11" 14" 22 lbs. 450 lbs.
12" 13.5" 17" 26 lbs. 450 lbs.
14" 15.5" 19" 28.5 lbs. 450 lbs.
